Key features |
Advantages: |
|
High accuracy electro-mechanical control: |

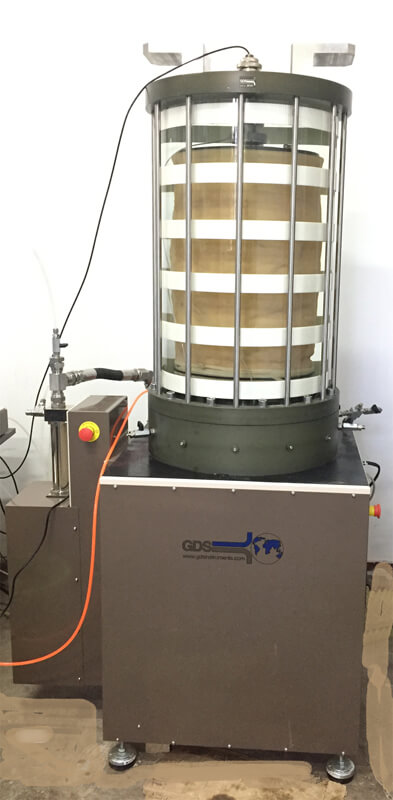

The DYNTTS system is capable of very small strain static tests through to large strain dynamic tests
|
|
Interchangeable load cells: |
Allows user to accommodate very soft to very stiff soils with ranges of 1, 2, 4, 8, 10, 16, 25, 40 and 60kN
|
|
In-built balanced ram (up to 5Hz systems): |
Keeps cell pressure constant during cycling, meaning a dynamic pressure controller is not required (unless dynamic cycling of cell pressure is required)
|
|
Interchangeable pedestals and triaxial extension top caps: |
Allows testing of 38, 50, 70 and 100mm diameter test specimens in the same cell
|
|
Direct closed loop of axial displacement & axial force: |
Accurate control in either axial displacement or axial force mode
|
|
Standard adaptive control |
Adaptive control technology significantly improves the dynamic load control performance of the device, thereby improving test accuracy.
|
