Earth Products China Limited won the bid of the GDS Ring Shear Apparatus (GDSRSA) at China University of Geosciences.

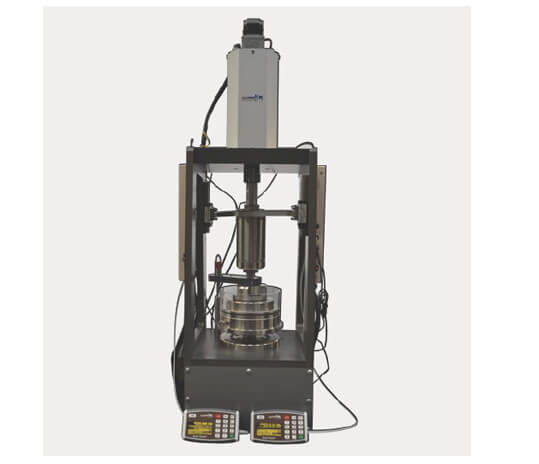

GDSRSA is a modern, compact, desktop ring shear system that allows for fully automated testing. The GDSRSA allows for a torsional ring shear test. Under drainage conditions, the rotary shearing force is continuously applied by a stepper motor until a constant residual shear stress is obtained. During the test, the shear plane of the cross-sectional area of the specimen did not change. The GDS ring shears apply consolidation stress through a GDS force actuator, control and data acquisition via a computer (with USB connection), and an external load cell directly measures the axial and shear stresses applied to the sample.




Main features:
 		 Advantages:
Small size and light weight:
 		 The benchtop system has a small footprint (50 x 32 cm) and is lightweight (30 kg) and is easy to handle

Fully contained system: The GDS ring cutter does not require an additional data collector, large loads, additional external pressure gauges and load rings. All required connections and equipment are directly installed in the unit

External Local LVDT Sensors Closed-loop external LVDTs record axial displacement is not included in the system, which allows for more accurate testing

Interchangeable base and top cap Allows one machine to test various sample sizes (if needed). The base and top cap are secured in the frame using locking clips

Axial displacement is connected via DIGIRFM When using displacement or strain target control, there is closed loop displacement increase and decrease feedback.

Drainage of the lower part of the sample: Allow the sample to drain during the test

Random disk type: Reduces pattern wrinkles.

2 USB cables for computer control: Allows user-friendly connection to any modern computer

Compact size and weight: The benchtop system has a small footprint (50 x 32 cm) and a small weight (30 kg) that is easy to handle.




For more information, please contact Earth Products China Limited.
