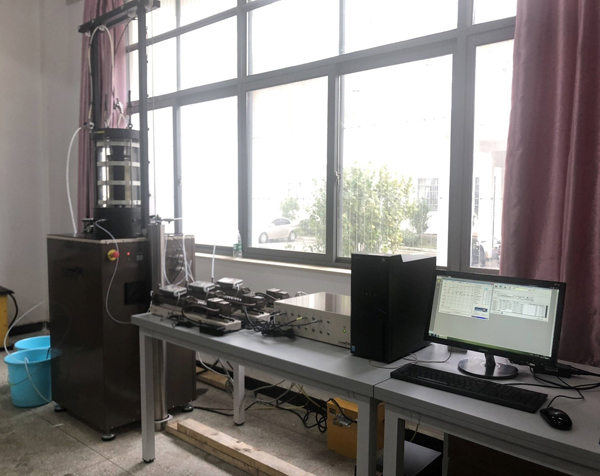

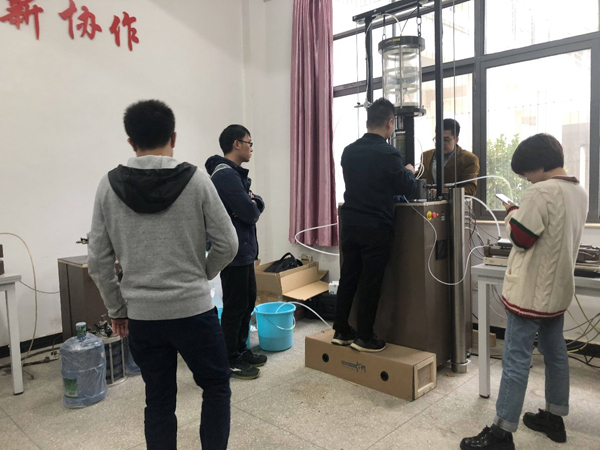

GDS Small-Strain Hollow Cylinder Apparatus Has Been Successfully Test Received By Huadong Traffic University




GDS Small-Strain Hollow Cylinder Apparatus Has Been Successfully Test Received By Huadong Traffic University

Key features Benefits to the user
Both systems exhibit high levels of axial and torsional stiffness coupled with the minimum amount of “backlash” and friction: Resulting in both machines being well suited for small strain testing right through to high load and strain testing.
Flexibility in the capacity of the system: Specimen size, load, pressures can be chosen to ensure the system is created specifically to suit the testing required and the budget.
Balanced ram: Allows a static pressure controller to be used for cell pressures with no significant fluctuations of cell pressure during dynamic tests.
Submersible, interchangeable combined axial / torque loadcell: Measures axial load/torque with no errors introduced due to friction on the loading ram.
Cell top lift frame: For ease of use when lifting the cell top, comes as standard.

Axial Displacement Encoder

<1μm
Axial Load

<0.3N (For 10kN system)
Axial/Torque Force Range

10kN/100Nm, 10kN/200Nm, 12kN/200Nm, 15kN/400Nm
Dimensions

700 X 700 X 1000mm (cell de-mounted), 1450mm (cell mounted), 2350mm with cell top lifting frame.
Load Range (kN)

10, 12 or 15
Operating Frequency (Hz)

2 or 5
Pressure Range (MPa)

1, 2
Sample Sizes

100/60/200 or 200/160/400 (OD, ID, height)
Weight Approx (kg)

500
