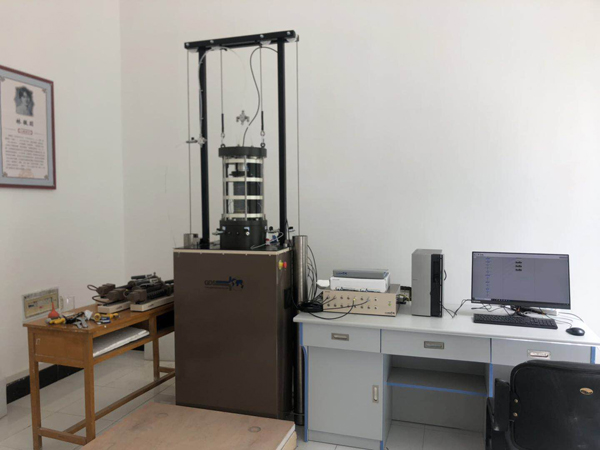

GDS Small Strain Hollow Cylinder Apparatus (SS-HCA) Was Successfully Test Received By Qingdao University




GDS Small Strain Hollow Cylinder Apparatus (SS-HCA) Was Successfully Test Received By Qingdao University


Axial Displacement Encoder

<1μm
Axial Load

<0.3N (For 10kN system)
Axial/Torque Force Range

10kN/100Nm, 10kN/200Nm, 12kN/200Nm, 15kN/400Nm
Dimensions

700 X 700 X 1000mm (cell de-mounted), 1450mm (cell mounted), 2350mm with cell top lifting frame.
Load Range (kN)

10, 12 or 15
Operating Frequency (Hz)

2 or 5
Pressure Range (MPa)

1, 2
Sample Sizes

100/60/200 or 200/160/400 (OD, ID, height)
Weight Approx (kg)

500
