LORD Sensing Unveils New Best-in-Class Inertial Sensor

Lord Sensing MicroStrain has expanded its portfolio of sensors for unmanned and autonomous vehicles for air, land, and sea with the introduction of the 3DM-GX5 family of inertial sensors.

“We have a large portfolio that shares the same software and protocol, allowing customers to move up and down the product line where they need varying levels of precision with MEMS Inertial Sensors or GNSS,”
says Andy Winzenz, Commercial Director, Lord Sensing.


Learn More About Inertial Sensors

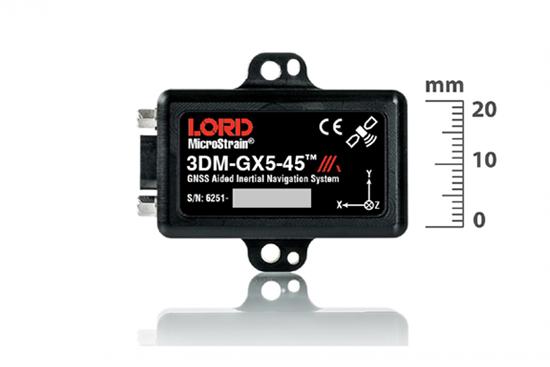

The All New 3DM-GX5-45

The 3DM-GX5-45 all-in-one navigation solution features a high performance integrated multi-constellation GNSS receiver utilizing the GPS, GLONASS, BeiDou, and Galileo satellite constellations. Sensor measurements are fully calibrated, temperature-compensated, and mathematically-aligned to an orthogonal coordinate system for highly accurate outputs.


Best-in-class GNSS/INS Technology

  • Fully calibrated, temperature-compensated, and mathematically-aligned to an orthogonal coordinate system for highly accurate outputs
  • High performance, low drift gyros with noise density of 0.005°/sec/√Hz and VRE of 0.001°/s/ g²2RMS
  • Accelerometer noise as low as 25 µg/√Hz




Download 3DM-GX5-45 Detialed Specification



Ease of Use

  • Automatic magnetometer calibration and anomaly rejection eliminates the need for field calibration
  • Automatically compensates for vehicle noise and vibration
  • Easy integration via comprehensive and fully backward-compatible communication protocol



Ideal Applications

  • Platform Stabilization
  • Camera/Antenna Pointing
  • GPS-Aided Navigation
  • Unmanned Vehicles
  • Regime Monitoring
  • Personnel Tracking
  • Calibration Reference



Outputs

  • Position
  • Velocity
  • Pitch/Roll/Yaw
  • Atmospheric Pressure
  • GPS
  • Acceleration
  • Angular Rate
