Volume 10, issue 4, 2016

eNews

Earth Products China Limited

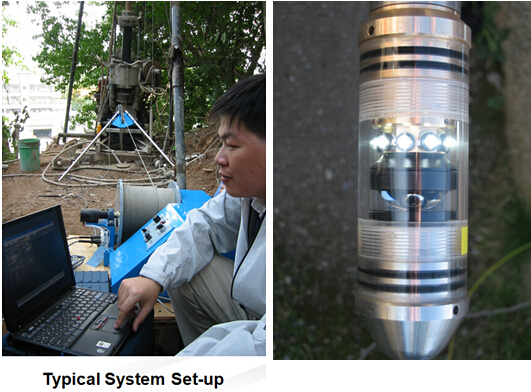

Hi-OPTV High Resolution Optical Televiewer
For borehole logging

The Hi-OPTV provides a continuous very high resolution oriented image of the borehole walls using a conventional light source. A unique optical system based on a fisheye lens allows the probe to survey 360 degrees simultaneously. This information is processed in real time to produce a complete “unwrapped” image of the borehole oriented to magnetic north. The probe offers superior resolution to the HRAT acoustic probe and produces images in real colour. While, unlike the HRAT, it can operate in air-filled boreholes, it is unsuitable for boreholes containing mud or cloudy fluids.

Hi-OPTIV applications include:

• Frature identificaton and orientation
• Stratigraphic studies
• Local stress studies (break-out)
• Core orientation
• Case hole studies

DIP Image-processing software:

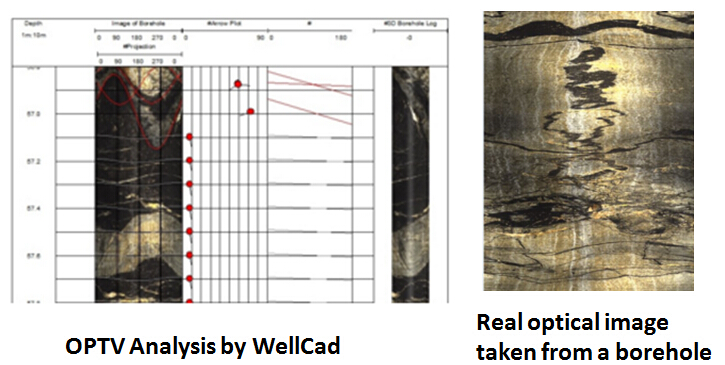

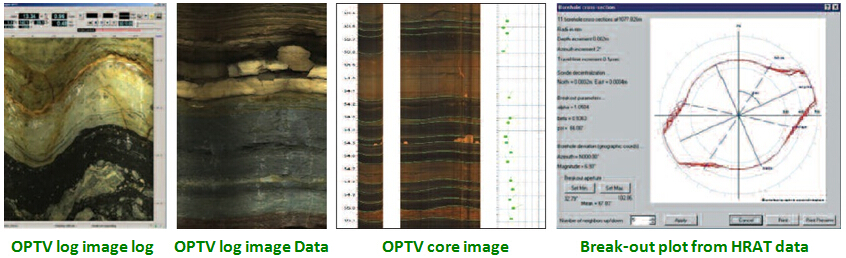

RG-DIP is sophisticated Windows?- based package for processing, interpreting and displaying acoustic and optical televiewer image logs and 4-arm dipmeter logs. Standard log presentations include tadpole and stick plots, stereographic projections of poles to planes and azimuth frequency diagrams. The synthetic core display allows convenient comparison of log and field data for orientation of fractured or incomplete core sections.

Click here to download the specification

For more information, please contact:
Patrick Chuk at 6017 5295 or email: patrickchuk@epc.com.hk
