Drilling Monitor DM-604

The DM604 helps to improve the quality of a drilled hole and reduces working time and cost!

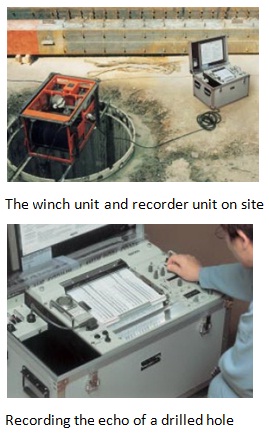

Drilling Monitor DM-604 can measure and confirm for underground foundation work; the state of wall surface, pile diameter, deflection and incline, namely the "vertical accuracy" of the drilled hole or excavated wall.

Advantages

?   Deeper excavation measurement in high accuracy

?   Clear recording even in slurry contaminated with dirt and sand

?   High quality excavation work reducing time and cost

?   Provide on site records of the perpendicularity of drilled holes and the shape of cross sections in high accuracy.

Features

?   Easier and simpler to operate.

?   Clear records of a drilled hole even in slurry, heavily contaminated with dirt and sand.

?   Clear and precise records that discriminate wall echoes from the noise.

?   Cancel the oscillation line echo that often prevents very close echo recordings.

?   Automatically controlled to stop at the casing and at the bottom of the hole.

?   Measurement range and depth data are indicated on the recording paper with wall face marks and numbers

?   Limit switches to avoid possible wire breakage or entanglement of the wire and cable.

Project Reference

?   Metro Project in India

?   Subway Project in Singapore

?   Skyscrapers in Hong Kong

?   LNG Project in South Korea

?   Railway Project in Taiwan

?   Metro Project in Thailand

Click here to download the brochure

For more information, please contact:

Patrick Chuk at 6017 5295 or email: patrickchuk@epc.com.hk

12/F Asia Trade Ctr., 79 Lei Muk Rd., Kwai Chung, N.T.
Tel: (852) 2392 8698                  Fax: (852) 2395 5655
Email: info@epc.com.hk               Website: www.epc.com.hk
